| PART |
Description |
Maker |

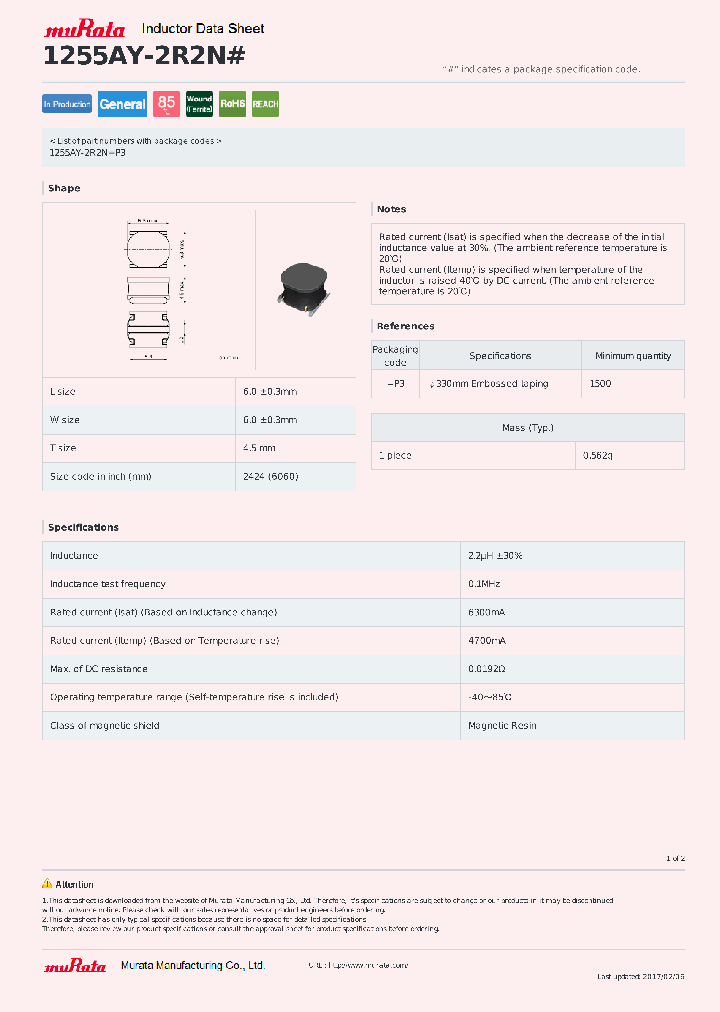

| 1255AY-1R0N |
Inductance test frequency
|
Murata Manufacturing Co...
|
| 1255AY-150M |
Inductance test frequency
|
Murata Manufacturing Co...
|
| 8230-90-RC 8230-94-RC 8230-78-RC 8230-76-RC 8230-5 |
Inductor; Series:8230; Inductance:820uH; Inductance Tolerance: /- 10 %; Q Factor:30; Self Resonant Frequency:3.8MHz; Core Material:Ferrite; Leaded Process Compatible:Yes 1 ELEMENT, 820 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:100nH; Inductance Tolerance: /- 10 %; Q Factor:40; Self Resonant Frequency:690MHz; Core Material:Phenolic; Leaded Process Compatible:Yes 1 ELEMENT, 0.1 uH, PHENOLIC-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:270uH; Inductance Tolerance: /- 10 %; Q Factor:30; Self Resonant Frequency:8MHz; Core Material:Ferrite; Leaded Process Compatible:Yes 1 ELEMENT, 270 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:220uH; Inductance Tolerance: /- 10 %; Q Factor:30; Self Resonant Frequency:9MHz; Core Material:Ferrite; Leaded Process Compatible:Yes 1 ELEMENT, 220 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:39uH; Inductance Tolerance: /- 10 %; Q Factor:45; Self Resonant Frequency:22MHz; Core Material:Ferrite; Leaded Process Compatible:Yes 1 ELEMENT, 39 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:15uH; Inductance Tolerance: /- 10 %; Q Factor:45; Self Resonant Frequency:35MHz; Core Material:Iron; Leaded Process Compatible:Yes 1 ELEMENT, 15 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:18uH; Inductance Tolerance: /- 10 %; Q Factor:50; Self Resonant Frequency:32MHz; Core Material:Iron; Leaded Process Compatible:Yes 1 ELEMENT, 18 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:27uH; Inductance Tolerance: /- 10 %; Q Factor:50; Self Resonant Frequency:22MHz; Core Material:Iron; Leaded Process Compatible:Yes 1 ELEMENT, 27 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:2.7uH; Inductance Tolerance: /- 10 %; Q Factor:37; Self Resonant Frequency:100MHz; Core Material:Iron; Leaded Process Compatible:Yes 1 ELEMENT, 2.7 uH, IRON-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:560nH; Inductance Tolerance: /- 10 %; Q Factor:30; Self Resonant Frequency:300MHz; Core Material:Phenolic; Leaded Process Compatible:Yes 1 ELEMENT, 0.56 uH, PHENOLIC-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:6.8uH; Inductance Tolerance: /- 10 %; Q Factor:50; Self Resonant Frequency:60MHz; Core Material:Iron; Leaded Process Compatible:Yes 1 ELEMENT, 6.8 uH, IRON-CORE, GENERAL PURPOSE INDUCTOR
Inductor; Series:8230; Inductance:1.5uH; Inductance Tolerance: /- 10 %; Q Factor:28; Self Resonant Frequency:140MHz; Core Material:Iron; Leaded Process Compatible:Yes
Inductor; Series:8230; Inductance:4.7uH; Inductance Tolerance: /- 10 %; Q Factor:45; Self Resonant Frequency:75MHz; Core Material:Iron; Leaded Process Compatible:Yes
Inductor; Series:8230; Inductance:3.3uH; Inductance Tolerance: /- 10 %; Q Factor:45; Self Resonant Frequency:90MHz; Core Material:Iron; Leaded Process Compatible:Yes
|
Bourns, Inc.
BOURNS INC
|
| PM1008-10NM-RC PM1008-18NM-RC PM1008-12NM-RC PM100 |
High Q Chip Inductors
SMD Inductor; Series:PM1008; Inductance:120nH; Inductance Tolerance: /- 10 %; Q Factor:60; Self Resonant Frequency:950MHz; Package/Case:1008; Terminal Type:PCB Surface Mount; Core Material:Ceramic; Current Rating:650mA
SMD Inductor; Series:PM1008; Inductance:680nH; Inductance Tolerance: /- 10 %; Q Factor:45; Self Resonant Frequency:375MHz; Package/Case:1008; Terminal Type:PCB Surface Mount; Core Material:Ceramic; Current Rating:400mA
SMD Inductor; Series:PM1008; Inductance:390nH; Inductance Tolerance: /- 10 %; Q Factor:45; Self Resonant Frequency:500MHz; Package/Case:1008; Terminal Type:PCB Surface Mount; Core Material:Ceramic; Current Rating:470mA
SMD Inductor; Series:PM1008; Inductance:820nH; Inductance Tolerance: /- 10 %; Q Factor:45; Self Resonant Frequency:350MHz; Package/Case:1008; Terminal Type:Surface Mount; Core Material:Ceramic; Current Rating:400mA
SMD Inductor; Series:PM1008; Inductance:3.3uH; Inductance Tolerance: /- 10 %; Q Factor:22; Self Resonant Frequency:110MHz; Package/Case:1008; Terminal Type:PCB Surface Mount; Core Material:Ceramic; Current Rating:290mA
|
Bourns Electronic Solutions
BOURNS INC
|
| PM0805-2N2M PM0805-R39K |
SMD Inductor; Series:PM0805; Inductance:2.2nH; Inductance Tolerance: /- 20 %; Q Factor:15; Self Resonant Frequency:6GHz; Package/Case:0805; Terminal Type:PCB Surface Mount; Core Material:Ceramic; Current Rating:600mA
SMD Inductor; Series:PM0805; Inductance:390nH; Inductance Tolerance: /- 10 %; Q Factor:40; Self Resonant Frequency:700MHz; Package/Case:0805; Terminal Type:PCB Surface Mount; Core Material:Ceramic; Current Rating:200mA
|
BOURNS INC
|
| PM1210-1R0J PM1210-1R2J PM1210-R18J |
SMD Inductor; Series:PM1210; Inductance:1uH; Inductance Tolerance: /- 5 %; Q Factor:28; Self Resonant Frequency:120MHz; Terminal Type:PCB Surface Mount; Core Material:Ferrite; Current Rating:400mA; Leaded Process Compatible:No
Inductor; Series:PM1210; Inductance:1.2uH; Inductance Tolerance: /- 5 %; Q Factor:28; Self Resonant Frequency:100MHz; Terminal Type:PCB Surface Mount; Core Material:Ferrite; Current Rating:390mA; Leaded Process Compatible:No
1 ELEMENT, 0.18 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
|
BOURNS INC
|
| XFSMCX-100M XFSMCX-R30M XFSMCX-R47M XFSMCX-3R3M XF |
Measurement frequency of inductance value : at 100KHz
|
XFMRS Inc.
|
| XFHCL11MM-1R0M XFHCL11MM-1R5M XFHCL11MM-3R3M XFHCL |
MEASUREMENT FREQUENCY OF INDUCTANCE VALUE: AT 100KHz
Series Shield Inductor
|
http://
XFMRS Inc.
|
| DFE18SANR24ME0-18 |
When rated current is applied to the products, inductance will be within 30% of initial inductance value range
|
Murata Manufacturing Co...
|
| 2000-6R8-H-RC 2000-3R3-V-RC 2000-1R2-V-RC 2000-5R6 |
Toroidal Inductor; Series:2000; Inductance:6.8uH; Inductance Tolerance: /- 20 %; Terminal Type:Radial Leaded; Current Rating:7.2A; Leaded Process Compatible:Yes; Resistance:13mohm 1 ELEMENT, 6.8 uH, GENERAL PURPOSE INDUCTOR
Inductor, Toroidal 1 ELEMENT, 3.3 uH, GENERAL PURPOSE INDUCTOR
Inductor, Toroidal 1 ELEMENT, 1.2 uH, GENERAL PURPOSE INDUCTOR
Toroidal Inductor; Series:2000; Inductance:5.6uH; Inductance Tolerance: /- 20 %; Terminal Type:Radial Leaded; Current Rating:9.7A; Leaded Process Compatible:Yes; Resistance:6.9mohm
1 ELEMENT, 18 uH, GENERAL PURPOSE INDUCTOR
1 ELEMENT, 2.7 uH, GENERAL PURPOSE INDUCTOR
Low radiation High operation frequency
Toroidal Inductor; Series:2000; Inductance:1.2uH; Inductance Tolerance: /- 20 %; Terminal Type:Radial Leaded; Current Rating:2.2A; Leaded Process Compatible:Yes; Resistance:1.7mohm
1 ELEMENT, 0.5 uH, GENERAL PURPOSE INDUCTOR
|
Bourns, Inc.
BOURNS INC
Bourns Electronic Solutions
|
|
